Product Details
- Amazon Sales Rank: #25464 in Car Audio or Theater
- Brand: Alpine
- Model: MRX-M240
- Dimensions: 6.00" h x
13.50" w x
22.50" l,
14.75 pounds
Features
- Alpine MRX-M240 Mono Power Amplifier
- Class-D, Best Dollar-Per-Watt Performance
- Max RMS Power Output: 2400 Watts
- RMS Power Output @ 4 Ohms: 1500 Watts
- RMS Power Output @ 2 Ohms: 2400 Watts

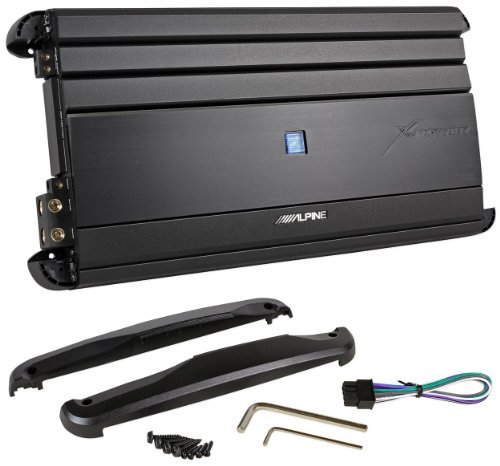

Brand New Alpine MRX-M240 X Series D Class Mono 2400 Watt RMS Digital Car Audio Amplifier
Product Description
Brand New Alpine MRX-M240 X Series D Class Mono 2400 Watt RMS Digital Car Audio Amplifier
Features:
Alpine MRX-M240 Mono Power Amplifier
Class-D, Best Dollar-Per-Watt Performance
Max RMS Power Output: 2400 Watts
RMS Power Output @ 4 Ohms: 1500 Watts
RMS Power Output @ 2 Ohms: 2400 Watts
RMS Power Output @ 1 Ohm: 1000 Watts
PDX Technology Inside
Sleek Aggressive Design w/ End Caps
Voltage ON/OFF Sensing, Non-Fading Speaker-Level Inputs for OEM Upgrade
Built-in Crossover, Bass EQ, and Subsonic Filter
Remote Bass (RUX-KNOB) Compatible
Extremely Low Noise and Distortion
Extremely High Damping Factor
Reliable No-Shutdown Design
Install Terminal Layout: Two-Sided
Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General Amplifier Type: Class-D (Digital)
Channel Design: 1 Channel (Mono)
Power Supply Design: DC-DC PWM Power Supply
Power Supply: MOSFET
Final Outputs: Direct FET
Crossover: Variable Low Pass Filter
Gain Control: Continuously Adjustable Gain Control
Subsonic Filter: Variable Subsonic Filter
Bass EQ: Bass EQ Function
Bass Control: Remote Bass Control (RUX-KNOB) Ready
Low-impedance Possibility: Low-impedance Possibility
Current Protection: Over-Current, Over-Voltage and Thermal Protection
Board Circuitry: S.T.A.R. Circuit
Board Design: 6-layer Glass Epoxy PC Board
RCA Output: Non-Fading Pre-Amp Output
Speaker-Level Inputs: 4-channel Speaker Level Inputs
Power Indicator: Top Mounted Blue LED Power Indicator
Thermal Control: Multi-stage Power Limiting
Sound Tuning Crossover Frequency : 50-400Hz, -24dB/oct.
Crossover Frequency (LPF): 50 - 400 Hz, -24dB/oct.
Subsonic Filter: 5 - 30 Hz, -24dB/oct.
EQ (Equalizer): 0 to +12dB, fc=50Hz
General Power Requirements: 14.4 V.D
Input Sensitivity: 0.1 - 4.0 V
Input Sensitivity (Speaker Level Input): 0.5 - 10 V
Input Impedance: >10k ohms
Customer Reviews
Most helpful customer reviews
2 of 3 people found the following review helpful.
alpine mrx-m240 AWESOME!
By Gabriel Rendon
I purchased this amp to power 2 12" Rockford P3s in my boat, This amp has POWER, lots of headroom and zero distortion. I am currently running it in 4 ohms since the P3 can only handle 600 each, but the sound and output is incredible, it will play for HOURS without thermal shutdown. HOWEVER, THIS AMP HAS AN APPETITE! plan to use a very big capacitor with this amp, I have 2 very big deep cycle marine batteries and it is able to handle long notes easily, however short, "kick bass" or "bursts" of bass will draw the supply power to below 10 volts, putting the amp into low voltage shut down, which is easily recoverable by simply turning off and on the head unit. adding a capacitor will avoid this.Avoid the off brands- Spend a little extra cash and buy alpine! I have had alpine amps for years and I have been very happy with them all and I have yet to have one break down!
