Product Details
- Amazon Sales Rank: #343353 in Car Audio or Theater
- Brand: Re
Features
- Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
- Flat wound voice coils
- Pressed Steel Basket
- Single 12" sealed subwoofer enclosure
- Dimensions in inches: 13.5" Width x 13.5" Height x 10.5" Top depth x 10.5" Bottom Depth
Re Audio Srx12d2 12-Inch 300 Watt Rms Rated Dual Voice Coil 2 Ohm Car Subwoofer
Product Description

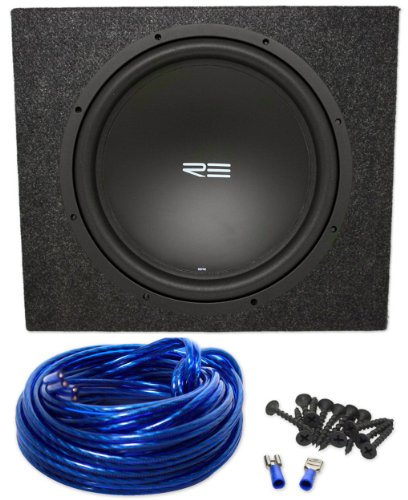

PACKAGE: BRAND NEW RE AUDIO SRX12D2 12" 300 WATT RMS RATED (600w PEAK) DUAL VOICE COIL 2 OHM CAR SUBWOOFER + ATREND SINGLE 12" SEALED SUBWOOFER ENCLOSURE + SUB BOX WIRE KIT WITH 14 GAUGE SPEAKER WIRE + SCREWS + SPADE TERMINALS
Features:
Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
Flat wound voice coils
Kraft Pulp Cone
Rubatek Foam Surround
Pressed Steel Basket
4-layer Copper Voice Coil? FEA Optimized Motor Structure
Double Stack Magnets
Linear Spiders
Foam Gasket
Mounting Depth - 5.75"
Mounting Hole Diameter - 11"
Overall Diameter - 12.375"
Bolt Hole Circle - 11.625"
Motor Width - 6.25"
Motor Depth - 2.5"
Basket Depth - 3.25"
Displacement - 0.14 cu. ft.
Weight - 16.5 lbs
QES: 0.41
QMS: 4.99
QTS: .38
Free air Resonance - FS - 23.6 HZ
VAS: 85 Liters
XMAX: 18 MM
SPL @ 1W / 1M: 86.2 dB SPL
Effective piston area: Sd: 480 cm ^2
Dc Resistance: RE: 1.8 ohm
Nominal Impedance: Dual 2 Ohm
300w RMS Rated
600 watts max
Force Factor, BI: 14.35
Single 12" sealed subwoofer enclosure
Dimensions in inches: 13.5" Width x 13.5" Height x 10.5" Top depth x 10.5" Bottom Depth
Volume per sub: 0.75 cubic feet
Machine precision cut mounting holes
3/4" heavy Dusty Construction
1" MDF mounting holes
Multi layers of high-grade glue ensure long life and no air leaking out
High quality spring loaded terminals
Designed, tested, and engineered to work perfectly with high powered subs
Designed to give the best sound quality
Full insert Dado end panels
Hardwood MDF
Top quality Atrend Pro series!
