Product Details
- Amazon Sales Rank: #230787 in Car Audio or Theater
- Color: Black
- Brand: Re
- Model: SXX12D4+12LSV+K1
- Dimensions: 70.10 pounds
Features
- 1000W RMS rated and tested
- Guaranteed legitimate RMS rating! No inflated peak watts like other brands!
- 12" Dual 4 ohm Subwoofer
- Single 12" SPL vented subwoofer enclosure
- Designed specifically for SPL - This box will make your sub louder than other enclosures

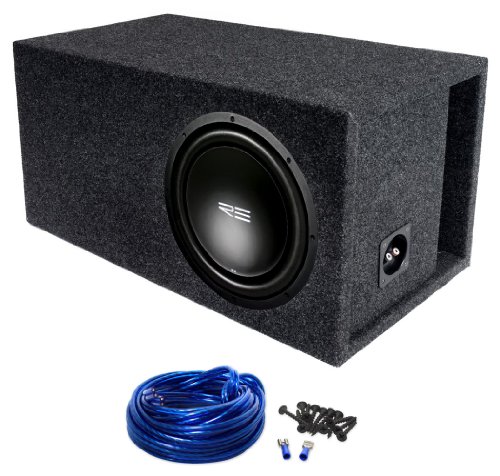

PACKAGE: RE AUDIO SXX12D4 12" 1,000 WATT RMS RATED (2000w PEAK) DUAL VOICE COIL 4 OHM CAR SUBWOOFER + ATREND 12LSV SINGLE 12" SPL VENTED SUBWOOFER ENCLOSURE + SUB BOX WIRE KIT W/ 14 GAUGE SPEAKER WIRE + SCREWS + SPADE TERMINALS
Product Description
PACKAGE: RE AUDIO SXX12D4 12" 1,000 WATT RMS RATED (2000w PEAK) DUAL VOICE COIL 4 OHM CAR SUBWOOFER + ATREND 12LSV SINGLE 12" SPL VENTED SUBWOOFER ENCLOSURE + SUB BOX WIRE KIT W/ 14 GAUGE SPEAKER WIRE + SCREWS + SPADE TERMINALS
Features:
1000W RMS rated and tested
Guaranteed legitimate RMS rating! No inflated peak watts like other brands!
12" Dual 4 ohm Subwoofer
Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
Flat wound voice coils
Dual Composite 2-piece Cone
Rubbertek Foam Surround
Cast Aluminum Basket
Tork-Tite Terminal
3 " 8-layer Aluminum Voice Coil
FEA Optimized Motor Structure
Triple Stack Magnets
Progressive Spiders
Wrap around Rubber Gasket
Mounting Depth - 6.5"
Mounting Hole Diameter - 11"
Overall Diameter - 12.5"
Bolt Hole Circle - 11.75"
Motor Width - 6.5"
Motor Depth - 3.25"
Basket Depth - 3.25"
Displacement - 0.16 cu. ft.
Weight - 25 lbs.
Electrical Q Value -Qes: 0.32
Mechanical Q Value -Qms: 4.4
Total Speaker Q Value -Qts: 0.30
Free Air Resonance -Fs: 30.6 Hz
Equivalent Compliance -Vas: 47.6 liters
One-Way, Linear Excursion -Xmax: 22 mm
Efficiency -SPL 1W/1m: 88.1 dB SPL
Effective Piston Area -Sd: 480 cm^2
DC Resistance -Re: 1.9 ohm
Nominal Impedance -Znom: Dual 4 ohm
Thermal Power Handling -Pe: 1000 W
Force Factor -Bl: 21
Ported Compact: 1.5cf tuned @ 35Hz
Ported Optimal: 2.0cf tuned @ 33Hz
Single 12" SPL vented subwoofer enclosure
Designed specifically for SPL - This box will make your sub louder than other enclosures
Dimensions in inches: 30" Width x 14.75" Height x 14.75" Top depth x 14.75" Bottom Depth
Volume per sub: 2 cubic feet
Machine precision cut mounting holes
3/4" heavy Dusty Construction
Multi layers of high-grade glue ensure long life and no air leaking out
High quality spring loaded terminals
Dado end panels
Heavy duty 44 pound box!
Mounting Depth: up to 14.75"
