Product Details
- Amazon Sales Rank: #143071 in Car Audio or Theater
- Brand: RE AUDIO
Features
- 1000 watts RMS
- Rated and tested! No inflated peak ratings like other brands! This is one of the most powerful subs on the market guaranteed!
- 10" Dual 2ohm Subwoofer
- Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
- Flat wound voice coils

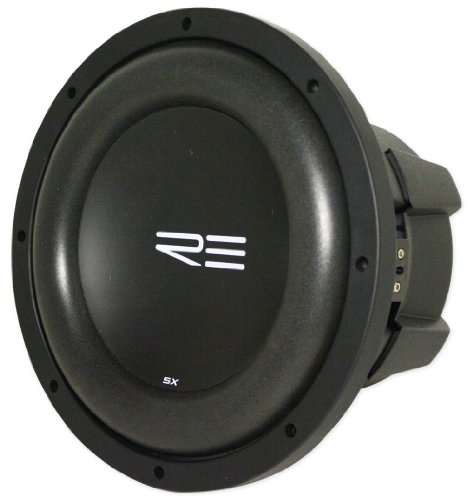

Brand New Re Audio Sxx10d2 10" 1,000 Watt Rms Rated (2000w Peak) Dual Voice Coil 2 Ohm Car Subwoofer with Triple Stacked Magnets and a Cast Aluminum Basket
Product Description
Brand New Re Audio Sxx10d2 10" 1,000 Watt Rms Rated (2000w Peak) Dual Voice Coil 2 Ohm Car Subwoofer With Triple Stacked Magnets And A Cast Aluminum Basket
Features:
1000 watts RMS
Rated and tested! No inflated peak ratings like other brands! This is one of the most powerful subs on the market guaranteed!
10" Dual 2ohm Subwoofer
Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
Flat wound voice coils
Dual Composite 2-piece Cone
Rubbertek Foam Surround
Cast Aluminum Basket
Tork-Tite Terminal
3 " 8-layer Aluminum Voice Coil
FEA Optimized Motor Structure
Triple Stack Magnets
Progressive Spiders
Wrap around Rubber Gasket
Mounting Depth - 6.4"
Mounting Hole Diameter - 9.25"
Overall Diameter - 11"
Bolt Hole Circle - 10.125"
Motor Width - 6.5"
Motor Depth - 3.4"
Basket Depth - 2.94"
Displacement - 0.15 cu. ft.
Weight - 24 lbs.
Electrical Q Value -Qes: 0.29
Mechanical Q Value -Qms: 4.3
Total Speaker Q Value -Qts: 0.27
Free Air Resonance -Fs: 30.7 Hz
Equivalent Compliance -Vas: 21.8 liters
One-Way, Linear Excursion -Xmax: 22 mm
Efficiency -SPL 1W/1m: 85.2 dB SPL
Effective Piston Area -Sd: 310 cm^2
DC Resistance -Re: 1.9 ohm
Nominal Impedance -Znom: Dual 2 ohm
Thermal Power Handling -Pe: 1000 W
Force Factor -Bl: 21
Ported Compact: 1.0cf tuned @ 35Hz
Ported Optimal: 1.25cf tuned @ 34Hz
