Product Details
- Amazon Sales Rank: #74969 in Car Audio or Theater
- Brand: Re
- Dimensions: 26.90 pounds
Features
- 1000W RMS rated and tested
- Guaranteed legitimate RMS rating! No inflated peak watts like other brands!
- Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
- Flat wound voice coils Dual Composite 2-piece Cone
- Wrap around Rubber Gasket

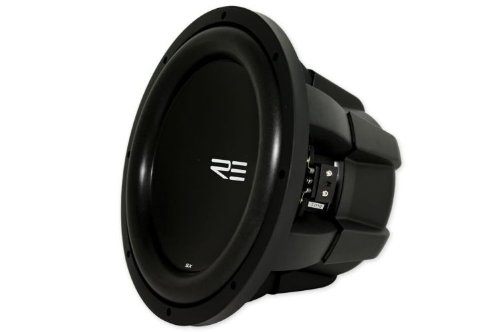

Brand NEW Re Audio Sxx12d4 12" 1,000 Watt Rms Rated (2000w Peak) Dual Voice Coil 4 Ohm Car Subwoofer with Triple Stacked Magnets and a Cast Aluminum Basket
Product Description
BRAND NEW RE AUDIO SXX12D4 12" 1,000 WATT RMS RATED (2000w PEAK) DUAL VOICE COIL 4 OHM CAR SUBWOOFER WITH TRIPLE STACKED MAGNETS AND A CAST ALUMINUM BASKET
Features:
1000W RMS rated and tested
Guaranteed legitimate RMS rating! No inflated peak watts like other brands!
12" Dual 4 ohm Subwoofer
Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
Flat wound voice coils
Dual Composite 2-piece Cone
Rubbertek Foam Surround
Cast Aluminum Basket
Tork-Tite Terminal
3 " 8-layer Aluminum Voice Coil
FEA Optimized Motor Structure
Triple Stack Magnets
Progressive Spiders
Wrap around Rubber Gasket
Mounting Depth - 6.5"
Mounting Hole Diameter - 11"
Overall Diameter - 12.5"
Bolt Hole Circle - 11.75"
Motor Width - 6.5"
Motor Depth - 3.25"
Basket Depth - 3.25"
Displacement - 0.16 cu. ft.
Weight - 25 lbs.
Electrical Q Value -Qes: 0.32
Mechanical Q Value -Qms: 4.4
Total Speaker Q Value -Qts: 0.30
Free Air Resonance -Fs: 30.6 Hz
Equivalent Compliance -Vas: 47.6 liters
One-Way, Linear Excursion -Xmax: 22 mm
Efficiency -SPL 1W/1m: 88.1 dB SPL
Effective Piston Area -Sd: 480 cm^2
DC Resistance -Re: 1.9 ohm
Nominal Impedance -Znom: Dual 4 ohm
Thermal Power Handling -Pe: 1000 W
Force Factor -Bl: 21
Ported Compact: 1.5cf tuned @ 35Hz
Ported Optimal: 2.0cf tuned @ 33Hz
