Product Details
- Amazon Sales Rank: #141566 in Car Audio or Theater
- Brand: Re
- Model: SRX12D4
- Dimensions: 18.75 pounds
Features
- Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
- 4-layer Copper Voice Coil? FEA Optimized Motor Structure
- Mounting Hole Diameter - 11"
- Bolt Hole Circle - 11.625"
- Displacement - 0.14 cu. ft.

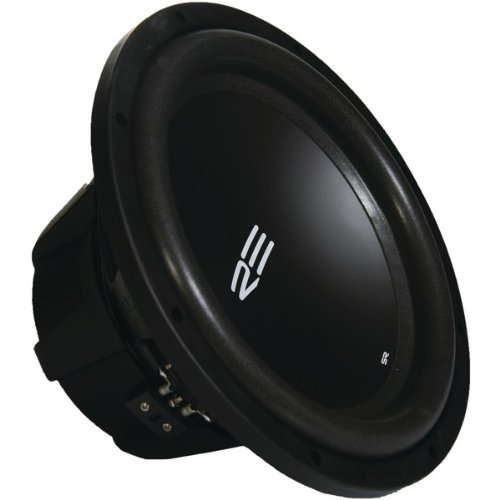

Brand NEW Re Audio Srx12d4 12" 300 Watt Rms Rated (600w Peak) Dual Voice Coil 4 Ohm Car Subwoofer (Free Air or Small Enclosure Mounting Options)
Product Description
BRAND NEW RE AUDIO SRX12D4 12" 300 WATT RMS RATED (600w PEAK) DUAL VOICE COIL 4 OHM CAR SUBWOOFER
(FREE AIR OR SMALL ENCLOSURE MOUNTING OPTIONS)
**FREE SHIPPING**
Features:
Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
Flat wound voice coils
Kraft Pulp Cone
Rubatek Foam Surround
Pressed Steel Basket
4-layer Copper Voice Coil? FEA Optimized Motor Structure
Double Stack Magnets
Linear Spiders
Foam Gasket
Mounting Depth - 5.75"
Mounting Hole Diameter - 11"
Overall Diameter - 12.375"
Bolt Hole Circle - 11.625"
Motor Width - 6.25"
Motor Depth - 2.5"
Basket Depth - 3.25"
Displacement - 0.14 cu. ft.
Weight - 16.5 lbs
QES: 0.41
QMS: 4.99
QTS: .38
Free air Resonance - FS - 23.6 HZ
VAS: 85 Liters
XMAX: 18 MM
SPL @ 1W / 1M: 86.2 dB SPL
Effective piston area: Sd: 480 cm ^2
Dc Resistance: RE: 1.8 ohm
Nominal Impedance: Dual 4 Ohm
300w RMS Rated
600 watts max
Force Factor, BI: 14.35
