Product Details
- Amazon Sales Rank: #112584 in Car Audio or Theater
- Brand: Re
- Model: SRX10D2
- Dimensions: 8.50" h x
12.50" w x
12.50" l,
16.35 pounds
Features
- Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
- Flat wound voice coils
- Kraft Pulp Cone
- Rubatek Foam Surround
- Pressed Steel Basket
BRAND NEW RE AUDIO SRX10D2 10" 300 WATT RMS RATED (600w PEAK) DUAL VOICE COIL 2 OHM CAR SUBWOOFER (FREE AIR OR SMALL ENCLOSURE MOUNTING OPTIONS)
Product Description

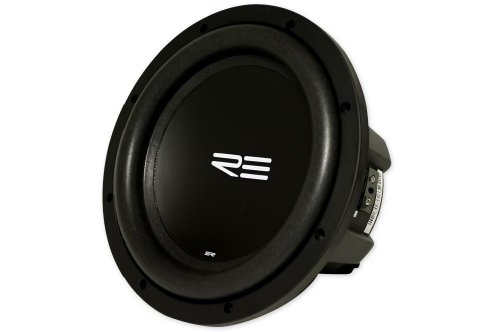

BRAND NEW RE AUDIO SRX10D2 10" 300 WATT RMS RATED (600w PEAK) DUAL VOICE COIL 2 OHM CAR SUBWOOFER
(FREE AIR OR SMALL ENCLOSURE MOUNTING OPTIONS)
**FREE SHIPPING**
Features:
* Engineered with new magnet covers that aid in cooling the voice coils while protecting the magnet
* Flat wound voice coils
* Kraft Pulp Cone
* Rubatek Foam Surround
* Pressed Steel Basket
* 4-layer Copper Voice Coil? FEA Optimized Motor Structure
* Double Stack Magnets
* Linear Spiders
* Foam Gasket
* Mounting Depth - 6"
* Mounting Hole Diameter - 9.25"
* Overall Diameter - 10.25"
* Bolt Hole Circle - 9.625"
* Motor Width - 6.25"
* Motor Depth - 2.5"
* Basket Depth - 2.75"
* Displacement - 0.12 cu. ft.
* Weight - 14.5 lbs
* QES: 0.39
* QMS: 5.5
* QTS: .36
* Free air Resonance - FS - 25.3 HZ
* VAS: 31 Liters
* XMAX: 18 MM
* SPL @ 1W / 1M: 85.3 dB SPL
* Effective piston area: Sd: 310 cm ^2
* Dc Resistance: RE: 1.8 ohm
* Nominal Impedance: Dual 2 Ohm
* 300w RMS Rated
* 600 watts max
* Force Factor, BI: 14.35
* Sealed: .35 - .6 cubic feet (.5 cubic feet is recommended)
* Ported: .65 - 1.2 cubic feet tuned @ 35 HZ (1 cubic feet is recommended)
